Module 5: Monitoring and troubleshooting

Coolstuff Store’s pipeline is running. The 3-stage workflow — clone, build, summarize — completes successfully and your manager has signed off on the approach. But before handing this over to the team, there’s one question left: "What happens when it breaks, and how do we know it’s broken?"

In this final module, you’ll learn how to monitor pipeline runs using both the CLI and the OpenShift console, and you’ll deliberately introduce a failure to practice the diagnostic workflow that Coolstuff Store’s team will use in production.

Learning objectives

By the end of this module, you’ll be able to:

  • Monitor running and completed PipelineRuns using tkn and oc commands

  • Interpret pipeline status conditions and identify which stage failed

  • Read step-level logs to find the root cause of a failure

  • Fix a broken pipeline and confirm recovery with a successful re-run

Understanding pipeline status

Tekton uses Kubernetes-style status conditions to communicate the state of every TaskRun and PipelineRun. Understanding these fields helps you triage failures quickly.

Key status fields:

  • SUCCEEDED: True means the run completed without errors. False means it failed. Unknown means it is still running.

  • REASON: A short code explaining the current state. Common values include Succeeded, Failed, Running, CouldntGetTask, TaskRunImagePullFailed, and PipelineRunTimeout.

  • CONDITIONS: A list of detailed condition objects. The message field in a condition contains the human-readable error description.

  • COMPLETIONTIME: Populated only when a run finishes. Comparing this to STARTTIME gives you the actual duration.

When a Pipeline has multiple Tasks and 1 fails, Tekton cancels any remaining Tasks that depend on the failed one. Tasks that are independent (not in the runAfter chain of the failed Task) may still complete.

Exercise 1: Monitor pipeline status with CLI and console tools

The pipeline runs from Module 3 are still in the cluster. In this exercise, you’ll use the monitoring tools that Coolstuff Store’s team will use daily to check pipeline health and investigate past runs.

  1. In the Terminal tab, confirm you are in the correct project:

    oc project tekton-workshop-%OPENSHIFT_USERNAME%

  2. List all PipelineRuns in the project and check their status:

    tkn pipelinerun list

    Expected output:

    NAME                              STARTED          DURATION   STATUS
coolstuff-build-push-sje33k       5 minutes ago    48s        Succeeded
coolstuff-build-pipeline-xnj10j   10 minutes ago   35s        Succeeded
coolstuff-pipeline-run-02         20 minutes ago   2m30s      Succeeded
coolstuff-pipeline-run-01         25 minutes ago   40s        Succeeded
...

  3. Inspect the full status of coolstuff-pipeline-run-02. This shows which Task ran in which order and how long each took:

    tkn pipelinerun describe coolstuff-pipeline-run-02

    Expected output includes:

    Name:           coolstuff-pipeline-run-02
...
🌡️ Status
STARTED              DURATION   STATUS
25 minutes ago       35s.       Succeeded
...
TaskRuns
 NAME                                          TASK NAME      STARTED         DURATION   STATUS
 coolstuff-pipeline-run-02-fetch-source-...   fetch-source    10 minutes ago  1m55s      Succeeded
 coolstuff-pipeline-run-02-build-...          build           8 minutes ago   25s        Succeeded
 coolstuff-pipeline-run-02-summarize-...      summarize       7 minutes ago   10s        Succeeded

  4. List the Kubernetes pods that were created by the PipelineRun. Each TaskRun creates 1 pod:

    oc get pods -l tekton.dev/pipelineRun=coolstuff-pipeline-run-02

    Expected output:

    NAME                                                     READY   STATUS      RESTARTS   AGE
coolstuff-pipeline-run-02-build-...                     0/1     Completed   0          8m
coolstuff-pipeline-run-02-fetch-source-...              0/1     Completed   0          10m
coolstuff-pipeline-run-02-summarize-...                 0/1     Completed   0          7m
    Tekton pods show Completed (not Running) after a task finishes. This is expected behavior — the pod is retained to allow log retrieval.

  5. Retrieve logs for the summarize task step specifically:

    tkn pipelinerun logs coolstuff-pipeline-run-02 -t summarize

    The -t flag filters logs to a single task name. This is useful when a pipeline has many tasks and you only need to check 1.

  6. View recent cluster events sorted by timestamp to catch infrastructure-level issues:

    oc get events --sort-by='.lastTimestamp' | tail -20

  7. In the OpenShift console, navigate to Pipelines, then Click Pipelines and select coolstuff-build-pipeline. Click PipelineRuns to see a list of all runs with their status, duration, and start time.

  8. Click coolstuff-pipeline-run-02 to open the pipeline graph. Each node shows its status icon and duration. Hover over a node(e.g. build) to see its TaskRun name(validate, test, package) and timing details.

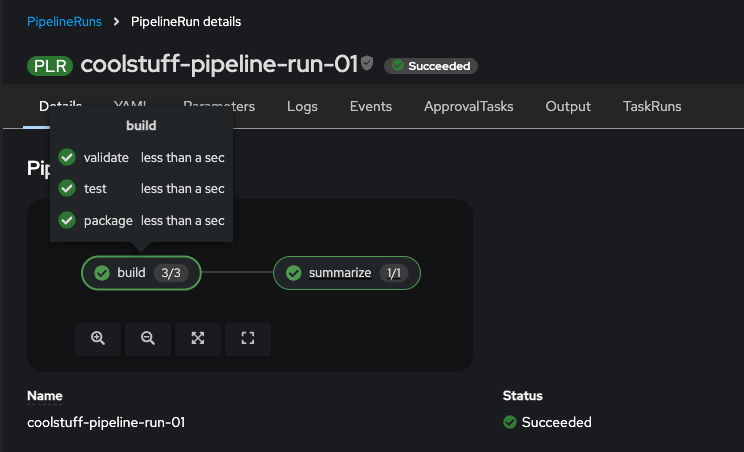

OpenShift console PipelineRun detail view showing the 3-stage pipeline graph with duration overlays on each task node
Figure 1. PipelineRun detail view with per-task timing

Verify

Confirm you can retrieve task-level information from the CLI:

tkn pipelinerun describe coolstuff-pipeline-run-02 -o jsonpath='{range .status.childReferences[*]}{.pipelineTaskName}{"\n"}{end}'
tkn taskrun list -o json | jq -r --arg pr "coolstuff-pipeline-run-02" '.items[] | select(.metadata.labels["tekton.dev/pipelineRun"] == $pr) | "Task: \(.metadata.labels["tekton.dev/pipelineTask"])  [\(.status.conditions[0].status) / \(.status.conditions[0].reason)]",(.status.steps[]? | "  step: \(.name)  → \(.terminated.reason // "Running")")'

  • Each task name is listed with its status reason

  • All tasks show Succeeded

  • You can identify individual task durations from tkn pipelinerun describe

Exercise 2: Diagnose and fix a failing pipeline run

Knowing how to monitor a healthy pipeline is half the skill. The other half is diagnosing failures. In this exercise, you’ll create a pipeline that has a missing Task definition — a realistic mistake that happens when a team adds a new pipeline stage before the underlying Task is written.

Create a pipeline with a missing Task reference

  1. Create a coolstuff-full-pipeline Pipeline. It references a deploy-coolstuff-app Task that does not exist yet. This simulates what happens when a pipeline is updated before all its Task definitions are in place:

    cat > coolstuff-full-pipeline.yaml << 'EOF'
apiVersion: tekton.dev/v1
kind: Pipeline
metadata:
  name: coolstuff-full-pipeline
spec:
  params:
    - name: app-name
      type: string
      default: "coolstuff-store-app"
    - name: app-version
      type: string
      default: "1.0.0"
  workspaces:
    - name: shared-data
  tasks:
    - name: build
      taskRef:
        name: build-coolstuff-app
      params:
        - name: app-name
          value: $(params.app-name)
        - name: app-version
          value: $(params.app-version)
      workspaces:
        - name: source
          workspace: shared-data
    - name: deploy
      runAfter:
        - build
      taskRef:
        name: deploy-coolstuff-app
      params:
        - name: app-name
          value: $(params.app-name)
        - name: app-version
          value: $(params.app-version)
EOF

  2. Apply the Pipeline:

    oc apply -f coolstuff-full-pipeline.yaml

    Expected output:

    pipeline.tekton.dev/coolstuff-full-pipeline created
    OpenShift Pipelines does not validate Task references at pipeline creation time. The error surfaces only when a PipelineRun tries to execute the missing Task.

  3. Create a PipelineRun against this pipeline:

    cat > coolstuff-run-fail.yaml << 'EOF'
apiVersion: tekton.dev/v1
kind: PipelineRun
metadata:
  name: coolstuff-full-run-01
spec:
  pipelineRef:
    name: coolstuff-full-pipeline
  params:
    - name: app-name
      value: "coolstuff-store-checkout"
    - name: app-version
      value: "1.0.0"
  workspaces:
    - name: shared-data
      emptyDir: {}
EOF
    This run uses emptyDir as the workspace backing. This is useful for short-lived or disposable runs where durable storage is not needed, and avoids conflicts with the workshop-pvc PVC used in previous exercises.

  4. Apply the PipelineRun:

    oc apply -f coolstuff-run-fail.yaml

  5. Watch the status update in real time:

    oc get pipelinerun coolstuff-full-run-01 -w

    Expected output:

    NAME                    SUCCEEDED   REASON    STARTTIME   COMPLETIONTIME
coolstuff-full-run-01   Unknown     Running   5s
coolstuff-full-run-01   Unknown     Running   30s
coolstuff-full-run-01   False       Failed    45s         46s

    Press Ctrl+C once the status shows False. Notice that the build task completes but the deploy task causes the pipeline to fail.

Diagnose the failure

  1. List all PipelineRuns to confirm the failed status:

    tkn pipelinerun list

    Expected output:

    NAME                         STARTED          DURATION   STATUS
coolstuff-full-run-01        1 minute ago     46s        Failed
coolstuff-pipeline-run-02    20 minutes ago   2m30s      Succeeded
...

Verify

  1. Describe the failed PipelineRun to identify which task failed and why:

    tkn pipelinerun describe coolstuff-full-run-01

    Expected output includes:

    TaskRuns
 NAME                                   TASK NAME   STARTED          DURATION   STATUS
 coolstuff-full-run-01-build-...        build       1 minute ago     25s        Succeeded
 coolstuff-full-run-01-deploy-...       deploy      55 seconds ago   5s         Failed

Message
 Tasks Completed: 1 (Succeeded), 1 (Failed)
 Tasks Failed: deploy

    Two things to note:

    • The build task completed with Succeeded

    • The deploy task shows Failed

  2. Get the detailed failure message from the failing TaskRun:

    tkn pipelinerun describe coolstuff-full-run-01 \
  -o jsonpath='{.status.conditions[0].message}'

    Expected output:

    Tasks Completed: 1 (Succeeded), 1 (Failed);
PipelineRun "coolstuff-full-run-01" failed to finish:
TaskRun coolstuff-full-run-01-deploy-... has failed
("step-unnamed-0" exited with code 1 (image: "..."):
tasks.tekton.dev "deploy-coolstuff-app" not found)

    The message tasks.tekton.dev "deploy-coolstuff-app" not found is the root cause. The deploy stage referenced a Task that does not exist.

  3. View the console failure view. In the Developer perspective, navigate to Pipelines, then coolstuff-full-pipeline, then coolstuff-full-run-01. The pipeline graph shows build in green and deploy in red.

OpenShift console pipeline graph showing the build task node in green Succeeded and the deploy task node in red Failed
Figure 2. Pipeline graph with partial failure — build succeeded, deploy failed

Fix the missing Task and re-run

  1. Create the missing deploy-coolstuff-app Task:

    cat > deploy-coolstuff-task.yaml << 'EOF'
apiVersion: tekton.dev/v1
kind: Task
metadata:
  name: deploy-coolstuff-app
spec:
  params:
    - name: app-name
      type: string
      description: Name of the application to deploy
    - name: app-version
      type: string
      description: Version of the application to deploy
  steps:
    - name: deploy
      image: registry.access.redhat.com/ubi9/ubi-minimal:latest
      script: |
        #!/usr/bin/env bash
        set -e
        echo "=== Deploying $(params.app-name) v$(params.app-version) ==="
        echo "Target namespace  : tekton-workshop"
        echo "Image             : coolstuff-registry/$(params.app-name):$(params.app-version)"
        echo "Deployment method : Rolling update"
        echo ""
        echo "Deployment complete. $(params.app-name) v$(params.app-version) is live."
EOF

  2. Apply the Task:

    oc apply -f deploy-coolstuff-task.yaml

    Expected output:

    task.tekton.dev/deploy-coolstuff-app created

  3. Confirm the Task now exists:

    oc get task deploy-coolstuff-app

  4. Create a new PipelineRun to confirm the fix resolves the failure:

    cat > coolstuff-run-fixed.yaml << 'EOF'
apiVersion: tekton.dev/v1
kind: PipelineRun
metadata:
  name: coolstuff-full-run-02
spec:
  pipelineRef:
    name: coolstuff-full-pipeline
  params:
    - name: app-name
      value: "coolstuff-store-checkout"
    - name: app-version
      value: "1.0.0"
  workspaces:
    - name: shared-data
      emptyDir: {}
EOF

  5. Apply the fixed PipelineRun and follow the logs:

    oc apply -f coolstuff-run-fixed.yaml && \
  tkn pipelinerun logs coolstuff-full-run-02 -f

    Expected output:

    [build : validate] === Validating coolstuff-store-checkout v1.0.0 ===
[build : validate] Workspace path: /workspace/source
[build : validate] Validation passed.
[build : test] === Running tests for coolstuff-store-checkout ===
[build : test] Continuing from: validate-complete
[build : test] All tests passed.
[build : package] === Packaging coolstuff-store-checkout v1.0.0 ===
[build : package] Continuing from: test-complete
[build : package] Package created: coolstuff-store-checkout-1.0.0.tar.gz
[deploy : deploy] === Deploying coolstuff-store-checkout v1.0.0 ===
[deploy : deploy] Target namespace  : tekton-workshop
[deploy : deploy] Image             : coolstuff-registry/coolstuff-store-checkout:1.0.0
[deploy : deploy] Deployment method : Rolling update
[deploy : deploy]
[deploy : deploy] Deployment complete. coolstuff-store-checkout v1.0.0 is live.

Verify

Confirm the fixed PipelineRun completed successfully:

tkn pipelinerun list

Expected output:

NAME                         STARTED          DURATION   STATUS
coolstuff-full-run-02        30 seconds ago   35s        Succeeded
coolstuff-full-run-01        5 minutes ago    46s        Failed
coolstuff-pipeline-run-02    25 minutes ago   2m30s      Succeeded
...
tkn pipelinerun describe coolstuff-full-run-02 \
  -o jsonpath='{.status.conditions[0].reason}'

Expected output:

Succeeded

  • coolstuff-full-run-02 shows Succeeded

  • Both build and deploy tasks completed

  • The failed coolstuff-full-run-01 remains in the list as a historical record

Module summary

Coolstuff Store’s team now has the full picture. Pipelines run automatically, and when they fail, there’s a clear path to the root cause: list runs, describe the failure, read the step logs, and fix the underlying issue.

What you accomplished:

  • Used tkn pipelinerun list and describe to inspect both successful and failed runs

  • Read the pipeline status conditions to identify the exact task and reason for failure

  • Used the OpenShift console pipeline graph to visualize which stages succeeded and which failed

  • Fixed a missing Task reference and confirmed recovery with a successful re-run

Key takeaways:

  • tkn pipelinerun describe is your first tool when a pipeline fails — it shows which task failed and its status reason in one command.

  • tasks.tekton.dev "name" not found means a Pipeline references a Task that hasn’t been created yet. Create the Task, then re-run.

  • Tekton retains completed pods long enough to retrieve logs. tkn pipelinerun logs works even after a run finishes.

  • The OpenShift console pipeline graph gives a faster visual overview than the CLI — use it for status at a glance, and the CLI for detailed diagnosis.

Learning outcomes

By completing this module, you should now understand:

  • How to use tkn pipelinerun list, describe, and logs to monitor pipeline health from the CLI

  • How Tekton status conditions communicate failure reasons and which tasks are affected

  • The diagnostic pattern for a failed pipeline: list to spot the failure, describe to identify the task, logs to find the root cause

  • How incomplete Task definitions surface as runtime failures and how to resolve them by creating the missing Task before re-running

Next steps:

Conclusion and next steps summarizes the full workshop and provides resources for continuing your Tekton and OpenShift Pipelines journey.
