Module 3: Building your first pipeline

Coolstuff Store’s manager reviewed the work from Module 2 and is encouraged. You’ve shown that Tasks can run validate, test, and package steps automatically and that the same Task works for any service. Now comes the step that ties it all together: chaining Tasks into a Pipeline.

A Pipeline gives Coolstuff Store a single, repeatable workflow that goes from source code to packaged artifact in one command. In this module, you’ll build that pipeline, run it end-to-end, and extend it to pull source code directly from the Gitea server.

Learning objectives

By the end of this module, you’ll be able to:

  • Create a Tekton Pipeline that chains multiple Tasks using runAfter ordering

  • Map Pipeline-level Parameters and Workspaces to individual Task inputs

  • Execute a Pipeline using a PipelineRun and monitor it through the visual pipeline graph

  • Extend a Pipeline by adding a Git source stage as the first step

Pipelines, Parameters, and Workspaces explained

A Pipeline is a collection of Tasks with defined execution order and shared inputs. Three concepts are key to understanding how Pipelines work:

  • runAfter: Declares that a Task must wait for another to complete before it starts. This defines sequential ordering without coupling Tasks directly.

  • Pipeline Parameters: Defined at the Pipeline level and passed down to individual Tasks. This keeps TaskRuns simple, with one place to supply all values.

  • Workspace mapping: A Pipeline declares workspaces and maps them to each Task’s workspace. All Tasks in a Pipeline can share the same underlying storage.

A PipelineRun is to a Pipeline what a TaskRun is to a Task. It supplies the runtime values (parameters, workspace bindings) and creates a record of the execution.

Exercise 1: Create your first Pipeline

You’ll create a Pipeline that chains 2 Tasks: the build-coolstuff-app Task from Module 2 and a new summarize-build Task that reports the build result. This gives you a complete build and report workflow in a single Pipeline.

Create the summarize-build Task

  1. In the Terminal tab, confirm you are in the correct project:

    oc project tekton-workshop-%OPENSHIFT_USERNAME%

  2. Create the summarize-build Task. It reads the artifact created by the build stage and prints a final build report:

    cat > summarize-build-task.yaml << 'EOF'
apiVersion: tekton.dev/v1
kind: Task
metadata:
  name: summarize-build
spec:
  params:
    - name: app-name
      type: string
      description: Name of the application that was built
    - name: app-version
      type: string
      description: Version of the application that was built
  workspaces:
    - name: source
      description: Workspace containing the build output from the previous stage
  steps:
    - name: summarize
      image: registry.access.redhat.com/ubi9/ubi-minimal:latest
      script: |
        #!/usr/bin/env bash
        set -e
        echo "========================================"
        echo "  Coolstuff Store Build Summary"
        echo "========================================"
        echo "Application : $(params.app-name)"
        echo "Version     : $(params.app-version)"
        if [ -f $(workspaces.source.path)/artifact.txt ]; then
          ARTIFACT=$(cat $(workspaces.source.path)/artifact.txt)
          echo "Artifact    : $ARTIFACT"
          echo "Status      : SUCCESS -- ready for deployment"
        else
          echo "Status      : FAILED -- artifact.txt not found"
          exit 1
        fi
        echo "========================================"
EOF

  3. Apply the Task:

    oc apply -f summarize-build-task.yaml

    Expected output:

    task.tekton.dev/summarize-build created

Create the Pipeline

  1. Create the coolstuff-build-pipeline Pipeline definition. It chains build-coolstuff-app followed by summarize-build, passing Parameters and the shared Workspace through both Tasks:

    cat > coolstuff-pipeline.yaml << 'EOF'
apiVersion: tekton.dev/v1
kind: Pipeline
metadata:
  name: coolstuff-build-pipeline
spec:
  params:
    - name: app-name
      type: string
      default: "coolstuff-store-app"
      description: Name of the application to build
    - name: app-version
      type: string
      default: "1.0.0"
      description: Version of the application to build
  workspaces:
    - name: shared-data
      description: Shared workspace passed to all pipeline tasks
  tasks:
    - name: build
      taskRef:
        name: build-coolstuff-app
      params:
        - name: app-name
          value: $(params.app-name)
        - name: app-version
          value: $(params.app-version)
      workspaces:
        - name: source
          workspace: shared-data
    - name: summarize
      runAfter:
        - build
      taskRef:
        name: summarize-build
      params:
        - name: app-name
          value: $(params.app-name)
        - name: app-version
          value: $(params.app-version)
      workspaces:
        - name: source
          workspace: shared-data
EOF
    The workspace name in each task entry (name: source) is the name defined in the Task spec. The workspace: shared-data value is the Pipeline-level workspace name. These do not need to match — this mapping is how the same Pipeline workspace reaches Tasks with different workspace names.

  2. Apply the Pipeline:

    oc apply -f coolstuff-pipeline.yaml

    Expected output:

    pipeline.tekton.dev/coolstuff-build-pipeline created

  3. Inspect the Pipeline structure:

    tkn pipeline describe coolstuff-build-pipeline

    Expected output includes:

    Name:        coolstuff-build-pipeline

Params
 NAME          TYPE     DEFAULT
 app-name      string   coolstuff-store-app
 app-version   string   1.0.0

Workspaces
 NAME          OPTIONAL
 shared-data   false

Tasks
 NAME       TASKREF              RUNAFTER
 build      build-coolstuff-app
 summarize  summarize-build      build

    • tkn pipeline describe shows 2 tasks with correct runAfter ordering

Verify

Confirm the Pipeline is registered in the cluster:

oc get pipeline coolstuff-build-pipeline

Expected output:

NAME                       AGE
coolstuff-build-pipeline   17s

  • Pipeline name is coolstuff-build-pipeline

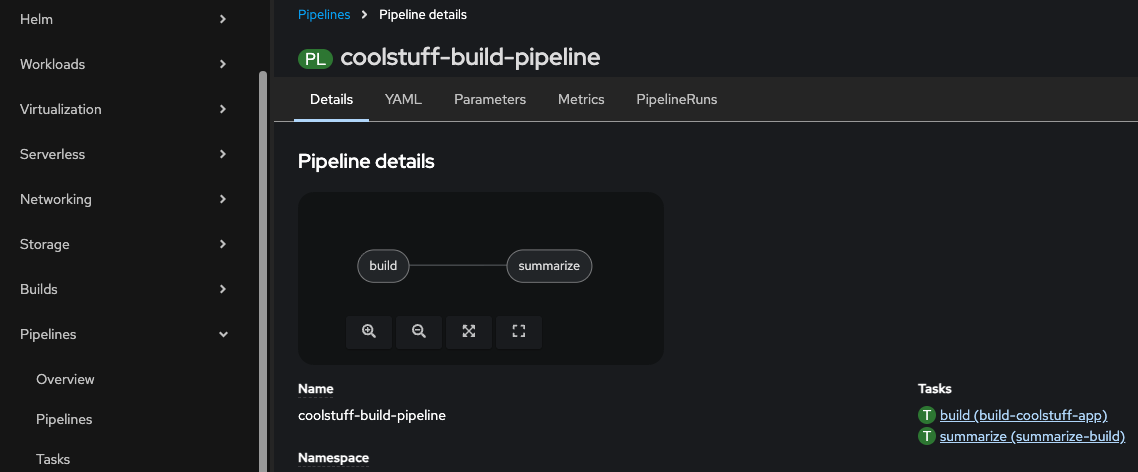

Open the OpenShift console and view the pipeline in the Pipelines section. Click Pipelines then Pipelines again and in the center view click the coolstuff-build-pipeline

The pipeline view shows a visual overview of the pipeline as well as more details about it. On the right hand side of the view we can see the two different Tasks we use in the pipeline as well as the workspace we use to store data between tasks.

OpenShift console showing the coolstuff-build-pipeline
Figure 1. Pipeline graph showing

Exercise 2: Run the Pipeline with a PipelineRun

With the Pipeline defined, you’ll create a PipelineRun to execute it. The PipelineRun is where you supply the runtime values: parameter values and the workspace binding. After it starts, you’ll view the visual pipeline graph in the OpenShift console, one of the most useful features for understanding pipeline status at a glance.

  1. Create the PipelineRun definition:

    cat > coolstuff-pipelinerun-01.yaml << 'EOF'
apiVersion: tekton.dev/v1
kind: PipelineRun
metadata:
  name: coolstuff-pipeline-run-01
spec:
  pipelineRef:
    name: coolstuff-build-pipeline
  params:
    - name: app-name
      value: "coolstuff-store-frontend"
    - name: app-version
      value: "3.0.0"
  workspaces:
    - name: shared-data
      persistentVolumeClaim:
        claimName: workshop-pvc
EOF

  2. Apply the PipelineRun:

    oc apply -f coolstuff-pipelinerun-01.yaml

    Expected output:

    pipelinerun.tekton.dev/coolstuff-pipeline-run-01 created

  3. Follow the logs for the entire pipeline:

    tkn pipelinerun logs coolstuff-pipeline-run-01 -f

    Expected output:

    [build : validate] === Validating coolstuff-store-frontend v3.0.0 ===
[build : validate] Workspace path: /workspace/source
[build : validate] Validation passed.
[build : test] === Running tests for coolstuff-store-frontend ===
[build : test] Continuing from: validate-complete
[build : test] All tests passed.
[build : package] === Packaging coolstuff-store-frontend v3.0.0 ===
[build : package] Continuing from: test-complete
[build : package] Package created: coolstuff-store-frontend-3.0.0.tar.gz
[summarize : summarize] ========================================
[summarize : summarize]   Coolstuff Store Build Summary
[summarize : summarize] ========================================
[summarize : summarize] Application : coolstuff-store-frontend
[summarize : summarize] Version     : 3.0.0
[summarize : summarize] Artifact    : coolstuff-store-frontend-3.0.0.tar.gz
[summarize : summarize] Status      : SUCCESS -- ready for deployment
[summarize : summarize] ========================================

    The log prefix format is [task-name : step-name], which shows exactly which task and step produced each line.

  4. While the PipelineRun is running (or after it completes), view the visual pipeline graph.

    1. In the OpenShift console, fold out the Pipelines section, then click Pipelines again and then select the PipelineRuns tab before clicking on the coolstuff-pipeline-run-01. Here you can see the visual graph of the executed PiplineRun as well as the overall status: Succeeded.

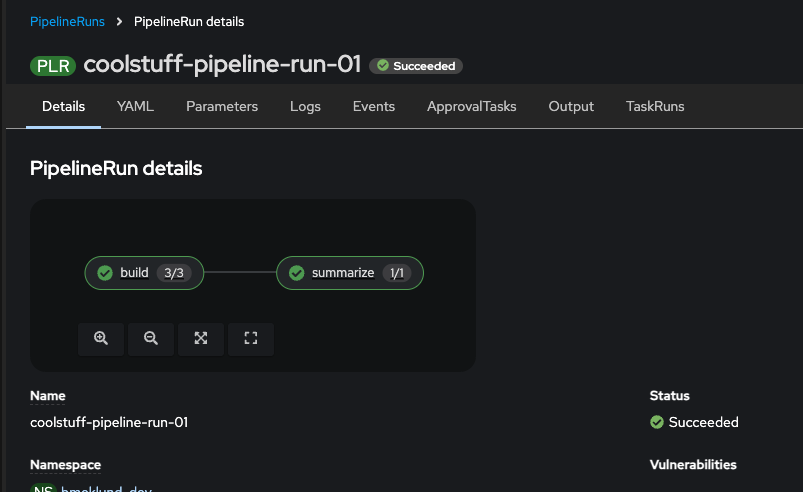

OpenShift console showing the coolstuff-build-pipeline graph with build and summarize task nodes both showing green Succeeded status
Figure 2. Pipeline graph showing end-to-end execution from build to summary

Verify

Confirm the PipelineRun completed successfully:

oc get pipelinerun coolstuff-pipeline-run-01 \
  -o jsonpath='{.status.conditions[0].reason}'&& echo

Expected output:

Succeeded
tkn pipelinerun list

Expected output:

NAME                       STARTED        DURATION   STATUS
coolstuff-pipeline-run-01  1 minute ago   35s        Succeeded

  • PipelineRun status is Succeeded

  • Log output shows both build and summarize task logs

  • The pipeline graph in the console shows both nodes with a green status

View the visual output of the pipeline run in the OpenShift console. Fold out the Pipelines section, then click Pipelines again and then select the PipelineRuns tab before clicking on the coolstuff-pipeline-run-01.

Click on the Logs tab and view the logs from the two tasks.

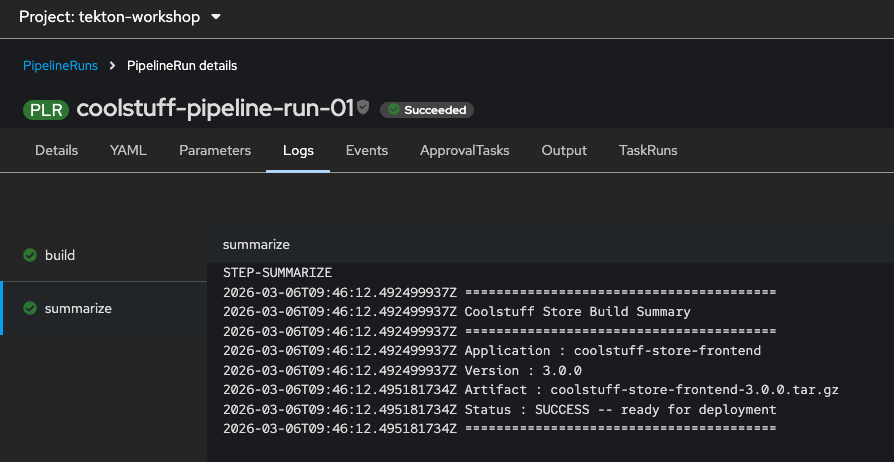

OpenShift console showing the coolstuff-build-pipeline logs
Figure 3. Pipeline run showing the logs for each Task

Exercise 3: Add a Git source stage to the Pipeline

Coolstuff Store’s pipeline currently starts by assuming the source code is already in the workspace. In a real CI/CD workflow, the first stage should clone source code from Git. In this exercise, you’ll create a clone-source Task that pulls code from the Gitea server, then extend the Pipeline to use it as the first stage.

Create a repository in Gitea

The first step is to create a Git repository to clone in the pipeline. You can use any Git server (e.g. GitHub, BitBucket, etc). For this lab we will use a Gitea git server.

Click on the 'Developer Repository' button below

Developer Repository - Button

  1. In the right top corner click Sign In

    Gitea start page
    Figure 4. Gitea’s start page with sign in

  2. Log in with your user:

    • Username: %OPENSHIFT_USERNAME%

    • Password: %OPENSHIFT_PASSWORD%

  3. In the top right corner, click the + icon and select New repository

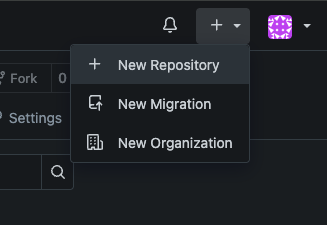

    Create new repo in gitea ui
    Figure 5. Create new repo in Gitea

  4. Fill in the repository details:

    • Repository name: coolstuff-app

    • Visibility: Private (or Public — either works)

    • Description: A coolstuff application

    • Check Initialize repository (Adds .gitignore, License and README)

  5. Click Create repository.

  6. You will now see your initilized repository with a basic readme file looking like the below picture. If you click Code you can note the repository clone URL displayed.

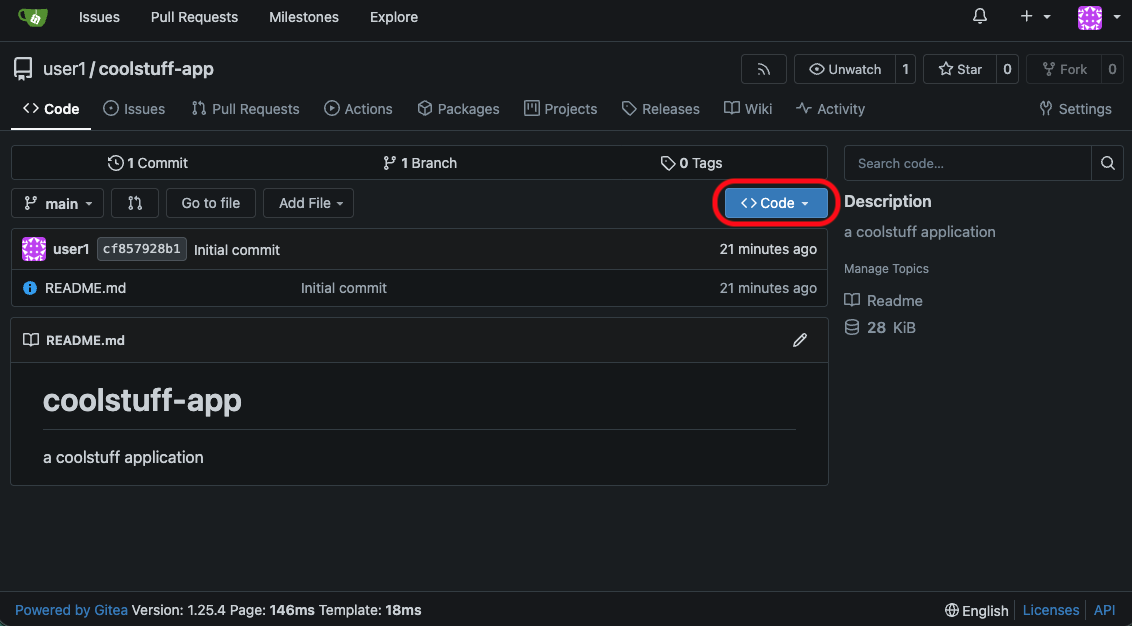

    Center view of the created repository and button to clone Gitea the code
    Figure 6. Gitea center view of created repository with button to clone code

  7. The clone URL will look like this if you named it correctly.

https://gitea-workshop-gitea.%APPS_HOSTNAME_SUFFIX%/%OPENSHIFT_USERNAME%/coolstuff-app.git

Update the Pipeline to add a git clone task

OpenShift Pipelines

You have used OpenShift Pipelines in the web console previously to view the tekton resources you created via the CLi.

But the OpenShift Pipelines console can be used for more, it provides a graphical interface to create, manage, and visualize CI/CD pipelines

Key Features:

  • Pipeline Builder: Create pipelines visually using pre-installed tasks (e.g., git-clone, s2i-nodejs, buildah) without writing YAML manually.

  • PipelineRuns & TaskRuns: View execution history, status, logs, and events for pipeline runs directly in the console.

  • Topology View: Visualize pipeline flows and their relationships with applications and resources.

  • Statistics & Metrics: With the OpenShift Pipelines console plugin (requires OpenShift 4.15+ and Tekton Results), view execution statistics like success rate, duration, and pipeline run trends.

  • Manual Approvals: Tech preview support for approval steps in pipelines via ApprovalTask.

Doing it manually in the console is a good way to learn about OpenShift Pipelines and it’s capabilities. It’s not something you do in a production or even test environment though. You can also do this manually using the CLi as before, or more commonly done - using GitOps and ArgoCD.

This time we will update our pipeline in the OpenShift console using the Pipeline Builder.

  1. Go to the OpenShift console, fold out Pipelines and then click Pipelines. Click the already created coolstuff-build-pipeline and then on the right side click on Actions and Edit Pipeline.

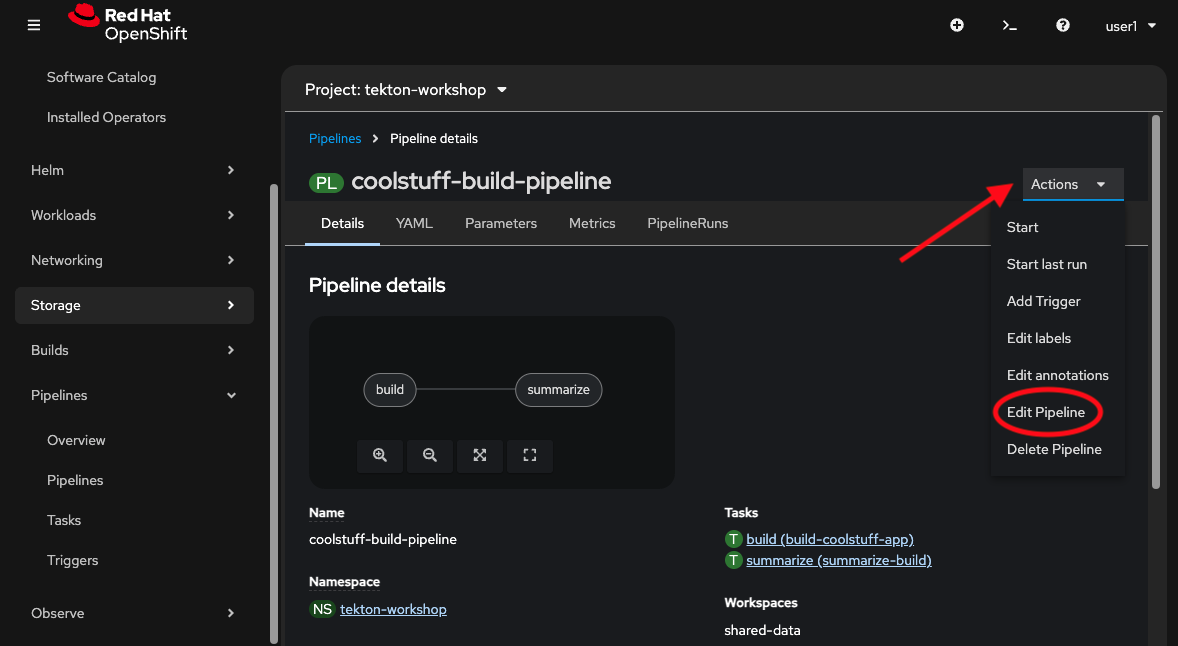

    Edit pipeline in console
    Figure 7. Edit the pipeline in the Pipeline builder

  2. Make sure you have selected the Pipeline builder choice in the center view.

    Edit pipeline in console
    Figure 8. Edit the pipeline in the Pipeline builder

  3. Add a task before the previously first task. Hover over the build task and click on the blue + sign that appears on the left hand side of build.

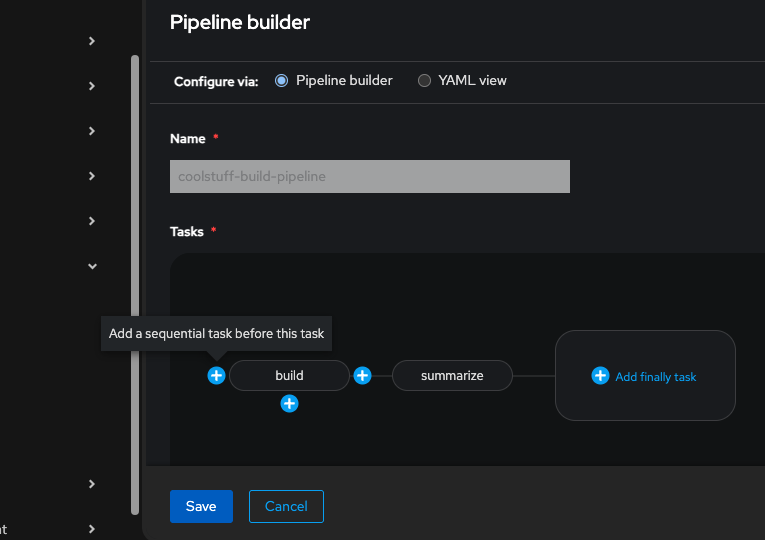

    Add a task before build task
    Figure 9. Hover over task to add a new task before

  4. Click Add Task and start typing git-clone. Tasks will appear in a list below. Choose the git-clone tagged with Red Hat. Then Click Add

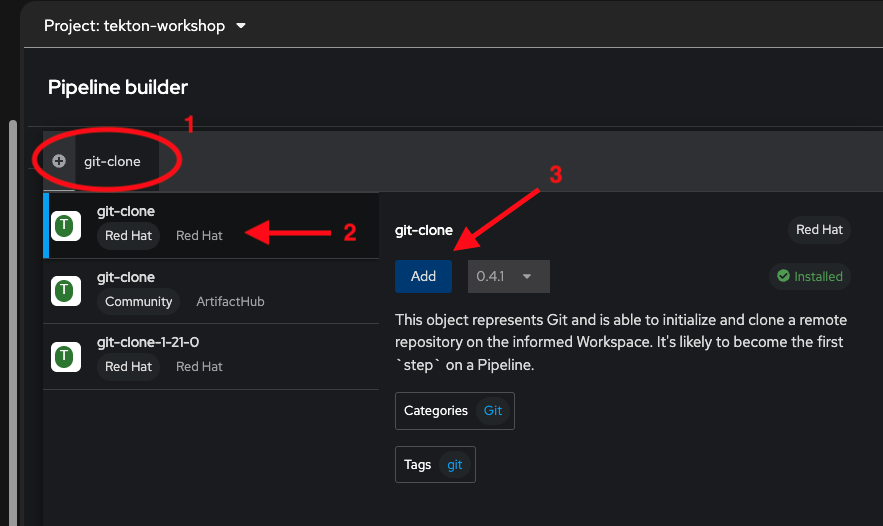

    Add a git-clone task
    Figure 10. Adding a git-clone task
    The git-clone task we use here is a default task provided by the OpenShift Pipeline installation. OpenShift Pipelines comes with a large number of tasks you can use out of the box.

  5. The updated Pipeline now has 3 tasks: git-clone, then build, then summarize. We now need to configure our git-clone task. Click on the git-clone task and fill in the following fields:

    Parameter Value Display Name

    Display name

    git-clone

    URL

    https://gitea-workshop-gitea.%APPS_HOSTNAME_SUFFIX%/%OPENSHIFT_USERNAME%/coolstuff-app.git

    output

    shared-data

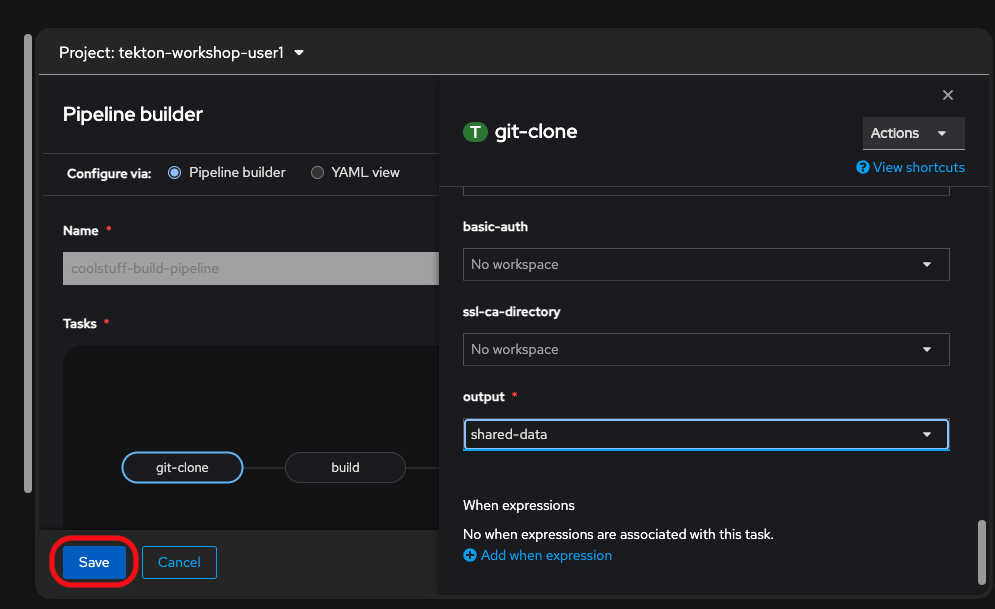

  6. Click on Save to save the configuration. Verify that the red exclamation mark i gone and the git-clone task is looking good.

Save git-clone task
Figure 11. Saving changes to git-clone

Start a new PipelineRun for your new Pipeline

With the added task to clone a remote repository we will now kick off a new PipelineRun for the updated Pipeline.

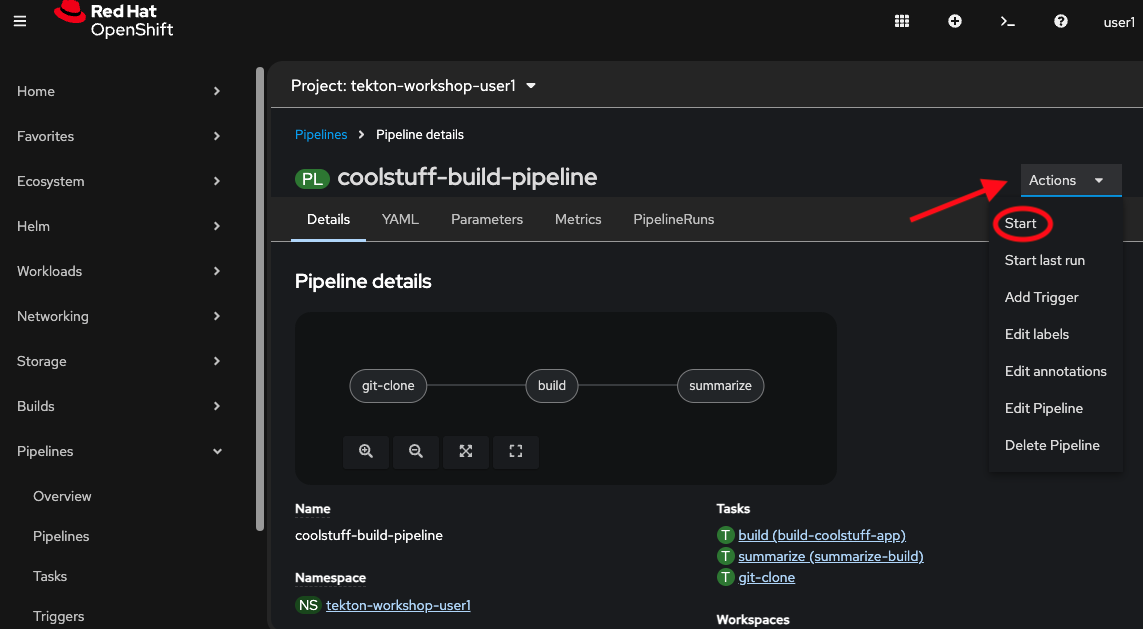

  1. In the view of the coolstuff-build-pipeline click on Actions and then Start.

    Action - start PipelineRun from OpenShift console

  2. Start will open up a new window with parameters to configure for the PipelineRun. Leave the majority as defaults.

    1. But make sure to set VolumeClaimTemplate as the base for the shared-data workspace.

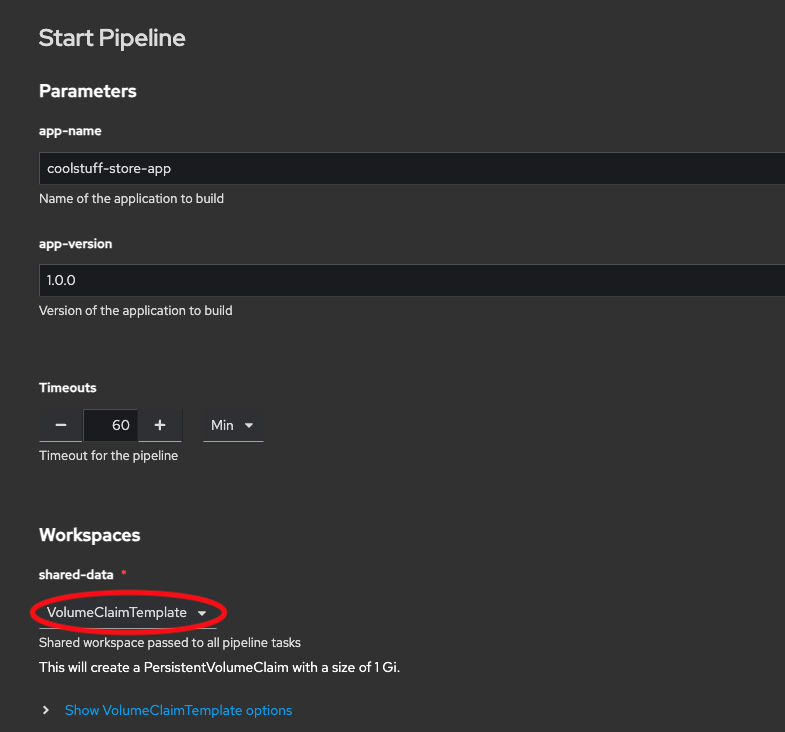

      Start PipelineRun from with VolumeClaimTemplate

  3. Click Start at the bottom of the page to start the PipelineRun.

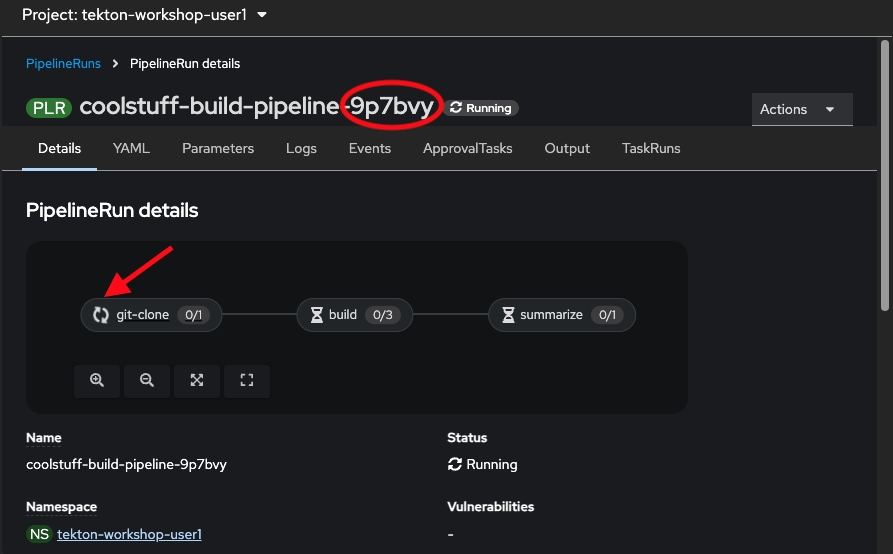

  4. After clicking Start you will be redirected to the PipelineRun overview of your running instance.

    1. Take note of the instance-id of your specific execution(9p7bvy in the below example) - you will need this generated id later on.

    2. You can also follow the progress of your PipelineRun, different icons will be showed on the different tasks in the central view depending on the state of them.

      PipelineRun executing

  5. When all the tasks in the pipeline have executed without issues the overview will be updated showing the status of the PipelineRun > Succeeded.

  6. If you have jumped out of the view you can find it again in the console under Pipelines → PiplineRuns → coolstuff-pipeline-random-id

    1. Click the pipelineRun and verify its all green and marked as Succeeded.

      OpenShift console pipeline graph showing git-clone
      Figure 12. 3-stage pipeline from Git source to packaged artifact

  7. You can also check the status of the different Tasks in the PipelineRun using the OpenShift CLi

    oc get pods -l tekton.dev/pipelineRun=coolstuff-build-pipeline-CHANGE_ME
    You will have to check what the random id appended on your pipelinerun-instance is and adjust the above command with your id instead. You can see the specific id appended on your pipelineRun in the OpenShift console.

    Expected output (non sekvential order)

    NAME                                            READY   STATUS      RESTARTS   AGE
coolstuff-build-pipeline-9p7bvy-build-pod       0/3     Completed   0          35m
coolstuff-build-pipeline-9p7bvy-git-clone-pod   0/1     Completed   0          36m
coolstuff-build-pipeline-9p7bvy-summarize-pod   0/1     Completed   0          35m

  8. Finally, check the full pipeline log in the terminal using tkn:

tkn pipelinerun logs coolstuff-build-pipeline-CHANGE_ME -f

Expected output:

tkn pipelinerun logs coolstuff-build-pipeline-someId -f
[git-clone : prepare-and-run] Running Script /scripts/prepare.sh
[git-clone : prepare-and-run] ---> Phase: Preparing the filesystem before cloning the repository...
[git-clone : prepare-and-run] ---> Phase: Deleting all contents of checkout-dir '/workspace/output/'...
[git-clone : prepare-and-run] removed directory '/workspace/output//lost+found'
[git-clone : prepare-and-run] Running Script /scripts/git-run.sh
[git-clone : prepare-and-run] ---> Phase: Setting output workspace as safe directory ('/workspace/output')...
[git-clone : prepare-and-run] ---> Phase: Setting up HTTP_PROXY=''...
[git-clone : prepare-and-run] ---> Phase: Settting up HTTPS_PROXY=''...
[git-clone : prepare-and-run] ---> Phase: Setting up NO_PROXY=''...
[git-clone : prepare-and-run] ---> Phase: Cloning 'https://repository-gitea.apps.cluster-mwqps.mwqps.sandbox3925.opentlc.com/user1/coolstuff-app.git' into '/workspace/output/'...
[git-clone : prepare-and-run] + exec git-init -url=https://repository-gitea.apps.cluster-mwqps.mwqps.sandbox3925.opentlc.com/user1/coolstuff-app.git -revision=main -refspec= -path=/workspace/output/ -sslVerify=true -submodules=true -depth=1 -sparseCheckoutDirectories=
[git-clone : prepare-and-run] {"level":"info","ts":1772811781.4634206,"caller":"git/git.go:384","msg":"Retrying operation (attempt 1)"}
[git-clone : prepare-and-run] {"level":"info","ts":1772811782.1669984,"caller":"git/git.go:218","msg":"Successfully cloned https://repository-gitea.apps.cluster-mwqps.mwqps.sandbox3925.opentlc.com/user1/coolstuff-app.git @ cf857928b1dae224f4259bbfea38b2576b0ab568 (grafted, HEAD, origin/main) in path /workspace/output/"}
[git-clone : prepare-and-run] {"level":"info","ts":1772811782.1670656,"caller":"git/git.go:384","msg":"Retrying operation (attempt 1)"}
[git-clone : prepare-and-run] {"level":"info","ts":1772811782.8715403,"caller":"git/git.go:267","msg":"Successfully initialized and updated submodules in path /workspace/output/"}
[git-clone : prepare-and-run] Running Script /scripts/report.sh
[git-clone : prepare-and-run] ---> Phase: Collecting cloned repository information ('/workspace/output/')...
[git-clone : prepare-and-run] ---> Phase: Setting output workspace as safe directory ('/workspace/output')...
[git-clone : prepare-and-run] ---> Phase: Reporting last commit date '1772806132'...
[git-clone : prepare-and-run] ---> Phase: Reporting parsed revision SHA 'cf857928b1dae224f4259bbfea38b2576b0ab568'...
[git-clone : prepare-and-run] ---> Phase: Reporting repository URL 'https://repository-gitea.apps.cluster-mwqps.mwqps.sandbox3925.opentlc.com/user1/coolstuff-app.git'...

[build : validate] === Validating coolstuff-store-app v1.0.0 ===
[build : validate] Workspace path: /workspace/source
[build : validate] Validation passed.

[build : test] === Running tests for coolstuff-store-app ===
[build : test] Continuing from: validate-complete
[build : test] All tests passed.

[build : package] === Packaging coolstuff-store-app v1.0.0 ===
[build : package] Continuing from: test-complete
[build : package] Package created: coolstuff-store-app-1.0.0.tar.gz

[summarize : summarize] ========================================
[summarize : summarize]   Coolstuff Store Build Summary
[summarize : summarize] ========================================
[summarize : summarize] Application : coolstuff-store-app
[summarize : summarize] Version     : 1.0.0
[summarize : summarize] Artifact    : coolstuff-store-app-1.0.0.tar.gz
[summarize : summarize] Status      : SUCCESS -- ready for deployment
[summarize : summarize] ========================================

Verify

Confirm both PipelineRuns completed, this time using the terminal:

First check the status using oc

oc get pipelinerun coolstuff-build-pipeline-CHANGE_ME \
  -o jsonpath='{.status.conditions[0].reason}'&& echo

Expected output:

Succeeded

And now list the different pipelineRuns using tkn

tkn pipelinerun list

Expected output:

NAME                              STARTED          DURATION   STATUS
coolstuff-build-pipeline-9p7bvy   15 minutes ago   42s        Succeeded
coolstuff-pipeline-run-01         5 hours ago      16s        Succeeded

Module summary

Coolstuff Store’s manager just watched a pipeline run end-to-end: clone source from Gitea, validate, test, package, and report. That’s the CI/CD workflow they’ve been asking for.

What you accomplished:

  • Created a coolstuff-build-pipeline Pipeline chaining 2 Tasks with runAfter ordering

  • Ran the Pipeline using a PipelineRun and monitored it through the visual pipeline graph

  • Added a clone-source Task that pulls real source code from the Gitea server

  • Extended the Pipeline to 3 stages: fetch-source, build, and summarize

Key takeaways:

  • Pipelines define workflow order with runAfter. Tasks remain independent and reusable.

  • Pipeline Parameters flow down to Tasks. One PipelineRun value reaches all Tasks that need it.

  • Workspace mapping decouples Task workspace names from Pipeline workspace names.

  • The OpenShift console pipeline graph gives instant visual status for every stage.

Learning outcomes

By completing this module, you should now understand:

  • How Pipelines chain Tasks using runAfter without creating tight coupling between them

  • How Pipeline Parameters and Workspace mappings connect the Pipeline definition to each individual Task

  • How a PipelineRun provides the runtime context (parameters, workspace bindings) that a Pipeline needs to execute

  • How the OpenShift console visual pipeline graph helps operators and developers understand pipeline status at a glance

Next steps:

Module 4: Pipelines as Code covers how to store your pipelines in Git together with your application code. This enables a tighter relationship between the pipeline and the application it covers.
