Module 2: Creating Tasks and TaskRuns

In Module 1, you confirmed that Red Hat OpenShift Pipelines is running and created a simple single-step Task. Coolstuff Store’s manager was impressed with the quick demonstration, but now wants to see something closer to a real build workflow.

In this module, you’ll build a multi-step Task that simulates the validate, test, and package stages of a CI/CD pipeline. You’ll also learn how Workspaces allow steps within a Task to share data, which is essential for passing artifacts between pipeline stages.

Table of Contents

Learning objectives
Multi-step Tasks and Workspaces explained
Exercise 1: Create a multi-step Task with Parameters
Exercise 2: Create a PVC and run the Task
Exercise 3: Reuse the Task with different parameters
Module summary
Learning outcomes

Learning objectives

By the end of this module, you’ll be able to:

Create a Tekton Task with multiple steps and Parameters
Explain the role of Parameters in making Tasks reusable across applications
Configure a Workspace on a Task to share data between steps
Bind a Workspace to a PersistentVolumeClaim (PVC) in a TaskRun

Multi-step Tasks and Workspaces explained

In Module 1, your Task had 1 step. Real CI/CD workflows need multiple steps that run in sequence, where each step builds on the previous one. For example:

Step 1 clones source code from a Git repository
Step 2 runs unit tests against that source code
Step 3 builds a container image and pushes it to a registry

To share data between steps, Tekton uses Workspaces. A Workspace is a shared filesystem that all steps in a Task can read from and write to. Workspace storage types include:

PersistentVolumeClaim: Durable storage, survives pod restarts. Recommended for build artifacts.
emptyDir: Ephemeral storage, wiped when the pod exits. Useful for temporary scratch space.
ConfigMap or Secret: Read-only data injected as files into the Task.

A Workspace is declared on the Task definition. A TaskRun binds the Workspace to an actual storage backend, such as a PVC. This separation keeps Tasks reusable across environments with different storage configurations.

Exercise 1: Create a multi-step Task with Parameters

You’ll create a Task called build-coolstuff-app that simulates the 3-stage build workflow Coolstuff Store needs: validate, test, and package. Using Parameters means the same Task definition can run for any application and version without modification.

In the Terminal tab, confirm you are in the correct project:

oc project tekton-workshop-%OPENSHIFT_USERNAME%

Expected output:

Now using project "tekton-workshop-%OPENSHIFT_USERNAME%" on server "...".

or

Already on project "tekton-workshop-%OPENSHIFT_USERNAME%" on server ...

Create the Task definition file:

cat > build-coolstuff-task.yaml << 'EOF'
apiVersion: tekton.dev/v1
kind: Task
metadata:
  name: build-coolstuff-app
spec:
  params:
    - name: app-name
      type: string
      default: "coolstuff-store-app"
      description: Name of the application to build
    - name: app-version
      type: string
      default: "1.0.0"
      description: Version of the application to build
  workspaces:
    - name: source
      description: Shared workspace for passing data between build stages
  steps:
    - name: validate
      image: registry.access.redhat.com/ubi9/ubi-minimal:latest
      script: |
        #!/usr/bin/env bash
        set -e
        echo "=== Validating $(params.app-name) v$(params.app-version) ==="
        echo "Workspace path: $(workspaces.source.path)"
        echo "validate-complete" > $(workspaces.source.path)/stage.txt
        echo "Validation passed."
    - name: test
      image: registry.access.redhat.com/ubi9/ubi-minimal:latest
      script: |
        #!/usr/bin/env bash
        set -e
        echo "=== Running tests for $(params.app-name) ==="
        PREV=$(cat $(workspaces.source.path)/stage.txt)
        echo "Continuing from: $PREV"
        echo "test-complete" > $(workspaces.source.path)/stage.txt
        echo "All tests passed."
    - name: package
      image: registry.access.redhat.com/ubi9/ubi-minimal:latest
      script: |
        #!/usr/bin/env bash
        set -e
        echo "=== Packaging $(params.app-name) v$(params.app-version) ==="
        PREV=$(cat $(workspaces.source.path)/stage.txt)
        echo "Continuing from: $PREV"
        ARTIFACT="$(params.app-name)-$(params.app-version).tar.gz"
        echo "$ARTIFACT" > $(workspaces.source.path)/artifact.txt
        echo "Package created: $ARTIFACT"
EOF

Apply the Task:

oc apply -f build-coolstuff-task.yaml

Expected output:

task.tekton.dev/build-coolstuff-app created

Inspect the Task structure using the Tekton CLI:

tkn task describe build-coolstuff-app

Expected output includes:

Name:        build-coolstuff-app

Params
 NAME          TYPE     DEFAULT
 app-name      string   coolstuff-store-app
 app-version   string   1.0.0

Workspaces
 NAME     DESCRIPTION
 source   Shared workspace for passing data between build stages

Steps
 NAME       IMAGE
 validate   registry.access.redhat.com/ubi9/ubi-minimal:latest
 test       registry.access.redhat.com/ubi9/ubi-minimal:latest
 package    registry.access.redhat.com/ubi9/ubi-minimal:latest

Verify

Confirm the Task is present and has the correct structure:

oc get task build-coolstuff-app

Expected output

NAME                  AGE
build-coolstuff-app   26s

Task name is build-coolstuff-app
tkn task describe shows 3 steps, 2 params, 1 workspace

Also check the new task in the OpenShift console in Pipelines then Tasks

Exercise 2: Create a PVC and run the Task

With the Task defined, you need to provide a storage backend for the Workspace. You’ll create a PersistentVolumeClaim (PVC) that gives the Task steps a shared filesystem, then create a TaskRun that binds the Workspace to that PVC.

Create a PVC definition:

cat > workshop-pvc.yaml << 'EOF'
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: workshop-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi
EOF

Apply the PVC:

oc apply -f workshop-pvc.yaml

Expected output:

persistentvolumeclaim/workshop-pvc created

Confirm the PVC is there:

oc get pvc workshop-pvc

Expected output:

NAME           STATUS   VOLUME   CAPACITY   ACCESS MODES   STORAGECLASS   AGE
workshop-pvc   Pending    ...      1Gi        RWO            ...            10s

OpenShift uses dynamic storage provisioning. The PVC moves from Pending to Bound automatically once storage is allocated/used.

Create a TaskRun that binds the Workspace to the PVC:

cat > build-taskrun-01.yaml << 'EOF'
apiVersion: tekton.dev/v1
kind: TaskRun
metadata:
  name: build-coolstuff-run-01
spec:
  taskRef:
    name: build-coolstuff-app
  params:
    - name: app-name
      value: "coolstuff-store-frontend"
    - name: app-version
      value: "2.1.0"
  workspaces:
    - name: source
      persistentVolumeClaim:
        claimName: workshop-pvc
EOF

Apply the TaskRun:

oc apply -f build-taskrun-01.yaml

Expected output:

taskrun.tekton.dev/build-coolstuff-run-01 created

Now check the PVC again:

oc get pvc workshop-pvc

Expected output:

NAME           STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   VOLUMEATTRIBUTESCLASS   AGE
workshop-pvc   Bound    pvc-d6f95e1a-2d50-4928-8f52-9b57f649c9bd   1Gi        RWO            gp3-csi        <unset>                 37s

Follow the logs until the TaskRun completes:

tkn taskrun logs build-coolstuff-run-01 -f

Expected output:

[validate] === Validating coolstuff-store-frontend v2.1.0 ===
[validate] Workspace path: /workspace/source
[validate] Validation passed.
[test] === Running tests for coolstuff-store-frontend ===
[test] Continuing from: validate-complete
[test] All tests passed.
[package] === Packaging coolstuff-store-frontend v2.1.0 ===
[package] Continuing from: test-complete
[package] Package created: coolstuff-store-frontend-2.1.0.tar.gz

The -f flag follows the log stream and returns to the prompt when the TaskRun finishes.

View the TaskRun detail in the OpenShift console.
1. Navigate to Pipelines, then Tasks. In the central view Click TaskRuns to see the different executions of tasks.
2. Click build-coolstuff-run-01 to see an overview with the Status=Succeeded, then click the Logs tab to see the log output from the task run.

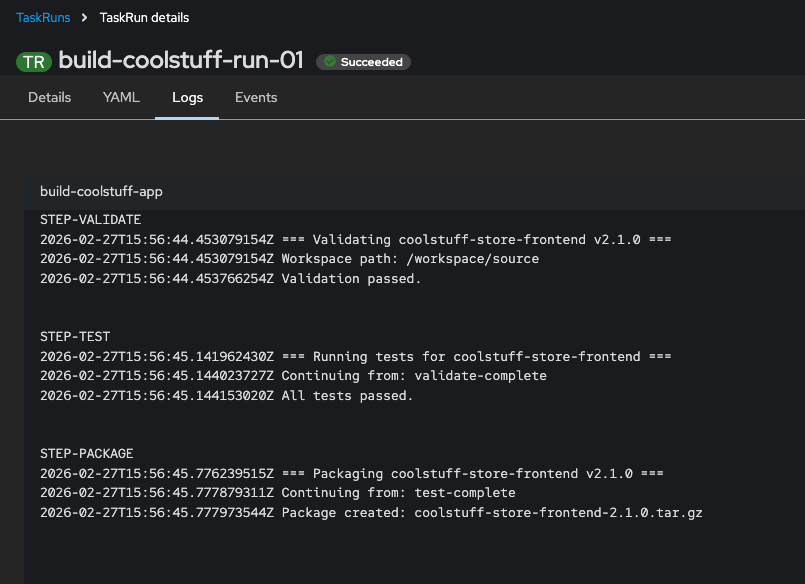

OpenShift console TaskRun detail showing validate

Figure 1. Multi-step TaskRun with logs

Verify

Confirm all 3 steps completed and the TaskRun succeeded:

oc get taskrun build-coolstuff-run-01 \
  -o jsonpath='{.status.conditions[0].reason}'&& echo

Expected output:

Succeeded

oc get taskrun build-coolstuff-run-01 \
  -o jsonpath='{.status.steps[*].name}'&& echo

Expected output:

validate test package

Status reason is Succeeded
All 3 step names are present
Log output shows each step reading data written by the previous step

Exercise 3: Reuse the Task with different parameters

One of the main reasons to define Tasks separately from TaskRuns is reusability. The same build-coolstuff-app Task can build any application at any version by providing different parameters. In this exercise, you’ll run a second TaskRun for a different Coolstuff Store service.

Both TaskRuns in this exercise use the same PVC, so run them sequentially. The first TaskRun must finish before you start the second, because a ReadWriteOnce PVC can only be mounted by 1 pod at a time.

Create a second TaskRun with different parameter values:

cat > build-taskrun-02.yaml << 'EOF'
apiVersion: tekton.dev/v1
kind: TaskRun
metadata:
  name: build-coolstuff-run-02
spec:
  taskRef:
    name: build-coolstuff-app
  params:
    - name: app-name
      value: "coolstuff-store-backend"
    - name: app-version
      value: "1.5.3"
  workspaces:
    - name: source
      persistentVolumeClaim:
        claimName: workshop-pvc
EOF

Apply the second TaskRun:
```
oc apply -f build-taskrun-02.yaml
```

Follow the logs:

tkn taskrun logs build-coolstuff-run-02 -f

Expected output:

[validate] === Validating coolstuff-store-backend v1.5.3 ===
[validate] Workspace path: /workspace/source
[validate] Validation passed.
[test] === Running tests for coolstuff-store-backend ===
[test] Continuing from: validate-complete
[test] All tests passed.
[package] === Packaging coolstuff-store-backend v1.5.3 ===
[package] Continuing from: test-complete
[package] Package created: coolstuff-store-backend-1.5.3.tar.gz

List all TaskRuns in the project:

tkn taskrun list

Expected output:

NAME                      STARTED         DURATION   STATUS
build-coolstuff-run-02    30 seconds ago  15s        Succeeded
build-coolstuff-run-01    2 minutes ago   18s        Succeeded
hello-coolstuff-run-01    10 minutes ago  12s        Succeeded

View the TaskRuns list in the OpenShift console under Pipelines, then Tasks.

Note that the two different TaskRuns use the same underlying Task.

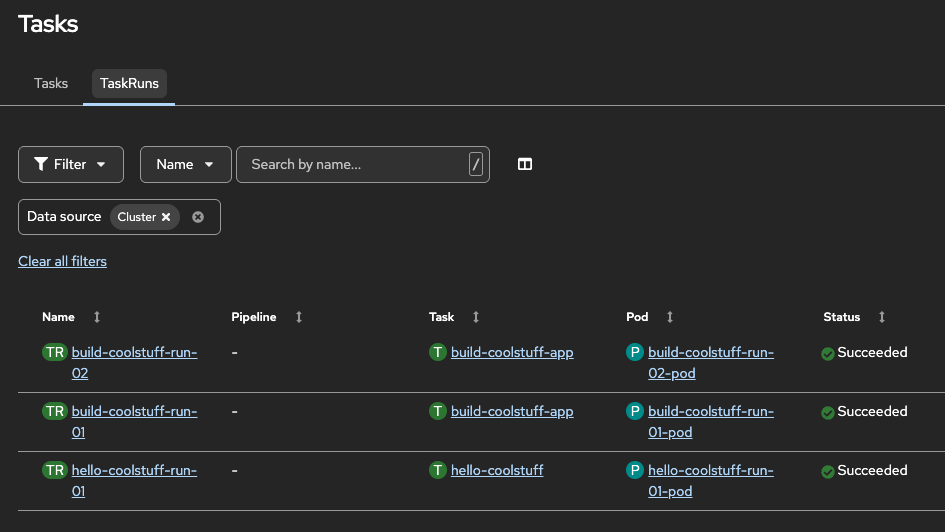

OpenShift console TaskRuns list showing build-coolstuff-run-01 and build-coolstuff-run-02 both with green Succeeded status badges

Figure 2. TaskRuns list demonstrating Task reuse with different parameters

Module summary

Coolstuff Store’s manager can now see a recognizable CI/CD flow: validate, test, and package, running automatically for any service. You’ve also shown that 1 Task definition is enough to build the entire service portfolio, just by changing parameters.

Both build-coolstuff-run-01 and build-coolstuff-run-02 show Succeeded
Each TaskRun used the same build-coolstuff-app Task definition
Each TaskRun produced a different artifact name based on the parameters supplied

What you accomplished:

Created a Tekton Task with 3 steps, 2 Parameters, and 1 Workspace
Created a PVC and bound it to the Task through a TaskRun
Confirmed data flows between steps via the shared Workspace
Ran the same Task twice with different parameters to demonstrate reusability

Key takeaways:

Steps in a Task run sequentially and share data through Workspaces.
Parameters make Tasks reusable. TaskRuns supply the runtime values.
Workspaces decouple storage configuration from Task definitions.
In Module 3, you’ll chain Tasks like these into a Pipeline that orchestrates a full CI/CD workflow.

Next steps:

Module 3: Building your first pipeline chains the Tasks you’ve written into an end-to-end Pipeline and runs it against Coolstuff Store’s Gitea repository.

Learning outcomes

By completing this module, you should now understand:

How multiple steps within a Task run sequentially and share data through a Workspace
The role of Parameters in making Tasks reusable without modifying the Task definition
How Workspaces decouple storage configuration from Task logic, allowing the same Task to run in different environments
The pattern of defining a Task once and executing it many times with different TaskRuns, which is the foundation of scalable CI/CD automation
